Anatomy of a mouse (day 1)

Day one of Anatomy of a Mouse, and a quick skip through some of the XHTML and CSS used on the new Disney Store UK online store.

Under the hood XHTML and CSS

Day one of Anatomy of a Mouse, and a quick skip through some of the XHTML and CSS used on the new Disney Store UK online store.

One of the things that I find fascinating about working with CSS is the application of new techniques to solve the real dilemmas which crop up during a site build. On a commercial site there are different pressures than on say a personal site where the decisions that you make are your own.

But there are only rare occurrences these days where <table>s beat CSS, and standards-based sites need not lack the visual appeal that brands like Disney rightly demand. Understanding this, our client pushed us to find solutions that (I hope) work well. So 'hats off', plus links to the 'far cleverer than me people' who dreamed up answers to the questions that this site redesign posed.

Let's look first at the home page and other components common to all pages.

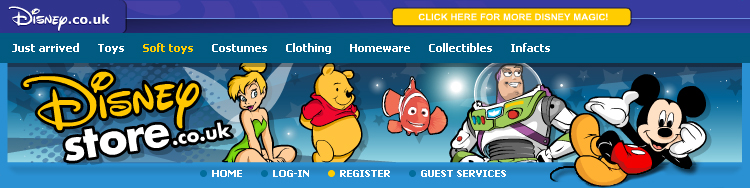

The Disney toolbar

The 'More Disney Magic' toolbar is a Flash movie (over which we had no control) fed by a JavaScript from another server, allowing them to update multiple sites from a single source.

The Disney toolbar

Adjustments here were to add <noscript> content and a hypertext link which accommodates browsers without scripting or Flash enabled. We also wrapped the toolbar in it's own <div> and added a title attribute to warn customers about a possible change in the 'active' window.

<div id="disney-corporate" title="Links to external sites" >
<script type="text/javascript" src="SCRIPT SOURCE"></script>
<noscript>
<a href="http://www.disney.co.uk/">Disney UK</a>
</noscript>
</div>

Dealing with latency

One concern was the latency between the loading of the page and the arrival of the scripted content. This became particularly noticeable at peak internet usage periods. Our solution? To move the <div> containing the script to near the bottom of the source order, then reposition it at the top visually with CSS.

#disney-corporate {
position : absolute;
top : 0;
}

Now the page will render before the script is called making the page appear to load much faster.

Embedding the Flash header

Here, Drew McLellan's Flash Satay method came to the rescue, boiling down the mark-up and giving us back valid code.

Flash header

<object type="application/x-shockwave-flash"
data="MOVIE.SWF" width="750" height="145">
<param name="movie" value="MOVIE.SWF" />
<img src="ALTERNATIVE IMAGE" alt="ALTERNATIVE TEXT"
</object>

A static version of the branding image is provided for non-Flash enabled browsers.

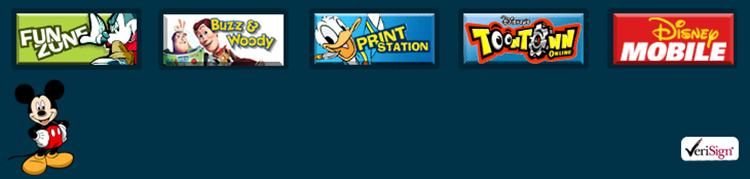

Trading links

It has been interesting to learn more about how large organisations trade links between separate parts of their business. On this site, these links are found near the bottom of each page. We evaluated several different methods of inserting these links, including straight-forward image links.

Trading links

We plumped in the end for a simple unordered list,

<ul id="asset-3" title="Links to external Disney sites">
<li id="a3-1"><a href="URL" title="Fun Zone">Fun Zone</a></li>
<li id="a3-2"><a href="URL" title="Buzz">Buzz</a></li>
<li id="a3-3"><a href="URL" title="Print Station">Print Station</a></li>
<li id="a3-4"><a href="URL" title="Toon Town">Toon Town</a></li>
<li id="a3-5"><a href="URL" title="Disney Mobile">Disney Mobile</a></li>
</ul>

Styled as required by Dave Shea's CSS Sprites. I won't labour the point here, Dave can explain it much better.

Style the list,

ul#asset-3 {
position : relative;
width : 750px;
height : 75px;
padding : 0;
margin : 0;
background : url(IMAGE BACKGROUND) no-repeat left top;
}

Format the list items and anchors and hide the text by moving the link text off-screen,

ul#asset-3 li {
position : absolute;
top : 0;
padding : 0;
margin : 0;
}

ul#asset-3 li, ul#asset-3 a {
display : block;
height : 75px;
padding : 0;
margin : 0;
text-indent : -3000em;
}

Position the anchors in a pseudo imagemap stylee.

#a3-1 {left : 0; width: 150px;}
#a3-2 {left : 150px; width: 145px;}
#a3-3 {left : 295px; width: 150px;}
#a3-4 {left : 445px; width: 148px;}
#a3-5 {left : 593px; width: 157px;}

Exactly the same approach has been taken with the 'assets' which dominate the centre of the home page.

IE5 Mac and no whitespace

We did encounter a bug however, and have (currently) found no way to fix it :( . Karova Store outputs XHTML without whitespace in the mark-up. This is fantastic if you want to forget about IE PC's whitespace bug, but here it breaks Dave's shiny Sprites. The lack of whitespace between list items makes IE5 Mac collapse the list, breaking the layout.

Our (hopefully) temporary solution is to hide the list from IE5 Mac with a little CSS slight-of-hand. I hope that we don't need this solution for long.

ul#asset-3 {
display : none;
}

/* Commented Backslash Hack
hides rule from IE5-Mac \*/
ul#asset-3 {display : block;}
/* End IE5-Mac hack */

Wrapping up

You might recognise some of my other favourite techniques including e-commerce definition lists from back in June.

Tomorrow I think I'll run through the accessibility decisions that we made.

In the meantime, keep ordering from the site. I know that somebody reading this has already ordered a Gonzo, and Colly is desperate for one of these!

Replies

#1 On October 5, 2004 05:11 PM John Oxton said:

I love the thinking behind the 'More Disney Magic' toolbar, one for the notebook! Looking foward to more! :)
#2 On October 5, 2004 05:45 PM Chris Moritz said:

I seem to remember that there were reported problems with the Satay method on certain machines running IE 5.5. Did you see any problems in QA with it?
#3 On October 5, 2004 05:58 PM Malarkey said:

@ Chris: Hi. Good point, and yes you are correct about certain possible Satay issues. To quote from Still Dreamer's article,

"it was realised that some versions of Internet Explorer 5.5 had corrupted Flash players installed and displayed a text box instead of a Flash movie."

Their solution relies on scripting, which is not a route that we wanted to take at the outset. Therefore the plan is to take a pragmatic approach and monitor the percentage of IE5 users before we commit to anything.
#4 On October 5, 2004 06:29 PM Neil said:

Great stuff Malarkey, thanks for sharing man:)
#5 On October 5, 2004 09:53 PM brooks said:

Oddly enough, I'm sitting at Disney on a wireless connection reading this entry.

Excellent work!
#6 On October 6, 2004 12:31 PM cgriego said:

In regards to the Disney toolbar and load times, the script tag offers a defer="defer" attribute that delays the script loading and executing until the page is rendered. Did you try this method? If so, where there any issues with it that made the css repositioning a better solution?
#7 On October 6, 2004 08:34 PM Aleksandar said:

Congratulations on excellent Disney redesign as well as this redesign here - much nicer colour scheme, at least to my eyes.

About the Flash Satay....I used it often in my works and thought it is the best there is. However, a friend of mine, running IE5.5 with all SPs there are on Win98, simply could not see any Flash. I tried with the very same install in VMWare only to see that all works properly. He reinstalled complete Windows, and yet it did not work.
Something was blocking the Flash, and even worse - it seems that IE did not realized that there is a Flash 7 installed - it went to download the ActiveX each time he accessed the page.

So in utter dispair, I tried Ian Hickson's code - and it worked. You might try it if problems appear.
#8 On October 7, 2004 04:13 PM Andy Budd said:

It seems like you've used an awful lot of image replacement on the site. I'd be interested to know why you've handled images this way rather than having them embedded in the page
#9 On October 7, 2004 09:13 PM Malarkey said:

@ Mr. Budd: That's an interesting question. It was a choice between Phark iFR and
<img src="" alt="WHAT THE IMAGE TEXT SAYS" />

We plumped for iFR because my own view is that there is a fundamental difference between an image which 'should' be in the source (eg: a product photo) and an image that is there to replace semantic text.

As the headers should be headers, iFR seemed the logical choice, although we will soon be experimenting with Flash replacement which seems more robust still.

@ Aleksandar: Thanks for the Hickson link. We will be trying that out on the next revision.
#10 On October 7, 2004 09:53 PM S said:

Hi ,
I have Windows XP with SP 2 and IE 6 running. I also have Macromedia Flash MX installed on my machine. But still I am not able to view the flash movie on the site.
What could be the problem?
#11 On October 9, 2004 03:37 AM cgriego said:

S, do you have ActiveX controls disabled? The Flash plugin for IE is an ActiveX control.
