Fireworks and XML (pt1)

In the first of an occassional column, I thought I'd write about how I use a combination of Fireworks and XML to create a site-full of graphical text headers for use with FIR.

In the first of an occassional column on one of my favourite graphics applications (the largely under-rated) Macromedia Fireworks, I thought I'd write about how I often use a combination of Fireworks MX and XML to create a site-full of graphical text headers for use with FIR techniques.

Data-Driven Graphics Wizard

Sometimes plain text headers styled with CSS are not enough to compliment a design, sometimes there is no alternative to using graphical header images. But on a large site, creating a series of images can be time consuming, so to save time I have created Fireworks and XML templates that I use again and again. These templates, combined with Fireworks' Data-Driven Graphics Wizard create a complete set of images in seconds and save me an enormous amount of time.

The XML file

I wanted to create a template that I could use many times over. As many sites share similar text content for headers (about us, contact us, privacy policy etc.) creating an XML file that contained all the header text that I was ever likely to need, seemed like a good idea. Setting up the XML was easy, even for a non-programmer.

In my favourite text editor, I created the XML file starting with,

<?xml version="1.0" encoding="iso-8859-1"?>
<records>
</records>

Now, for each header I'll need, I add the header text between <record> tags. You can name the variable anything you like, but I have decided on <varHeader>.

<?xml version="1.0" encoding="iso-8859-1"?>
<records>


<record>
<varHeader>About us</varHeader>
</record>

<record>
<varHeader>Contact us</varHeader>
</record>
</records>

(Kindler Chase has recently made a nifty XML file generator inspired by this article over at nCubed.)

Save the XML file (remembering the .xml extension). Over time I have added header text variables for most eventualities and I still continue to add to this core XML file whenever a new header presents itself.

Setting up the Fireworks image template

Next I created a Fireworks canvas, making sure that I allowed enough width for longer header text. Next I used the Text Tool (T) to add text. In place of 'real' text, I added a variable to match the variable in my XML file.

{varFIR}

Then I saved the file without any text styling. (Remember, this is a template that I continue to reuse in many different styles on many different sites.

Fireworks graphic template with one variable and no styling

Now for some action

With my template Fireworks file saved for use another day, I start each new project by adding styling to the text. Fonts, colours can be altered to suit and Fireworks effects can be also be added if I fancy a stroke, shadow or glow. For this example I have chosen the Lambretta style font used on this site.

Styled Fireworks graphic template with one variable

When the text variable is styled as I want it, I save the file as a new Fireworks PNG into my site 'elements' folder.

Now I select Commands > Data-Driven Graphics Wizard from Fireworks' menu and follow the on-screen instructions. The process is very clear.

Select the XML file created earlier1. Select the XML file created earlier.

2. Preview the imported data, tedious so I usually hit 'next' pretty quickly to skip this step.

Select which records to convert into header images3. Select which records to convert into header images (usually all of them).

4. Map any mismatched variables to field names in your XML file (not usually necessary...).

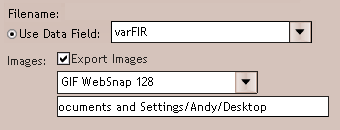

Choose how you would like the files named and your export settings5. Choose how you would like the files named and your export settings (.gif or .jpg).

6. Press 'Done' to export your all image headers.

Voila! Tens, hundreds or even thousands of graphical header images created in a fraction of the time it would take to create them manually. All from a standard XML file created just the once, and an easily styled Fireworks template image. Priceless!

A completed header image, automatically created from XML data source

Wrapping it up

The developer of the Data-Driven Graphics Wizard, Joseph Lowery, has witten a more comprehensive article on the technique over at Macromedia. I hope that it saves you as much time as it has saved me!

For more on CSS FIR image replacement techniques, see also:

Update

Hot off the press is Stewart Rosenberger's article on Dynamic Text Replacement over at A List Apart. Awesome stuff! Anyone care to write an asp version.
